API

API allows you to send any block or flow from via a POST API request. It also allows you to send blocks to contacts with specific properties.

Here's an example of a typical request:

javascript
https://api.chatfuel.com/bots/<BOT_ID>/users/<USER_ID>/send?chatfuel_token=<TOKEN>&chatfuel_flow_name=<FLOW_NAME>&<USER_ATTRIBUTE_1>=<VALUE_1>&<USER_ATTRIBUTE_2>=<VALUE_2>

With all the data filled in, your request should look something like this:

javascript
https://api.chatfuel.com/bots/612899e1a6ec6f5e0f2fe556/users/5949225915148689/send?chatfuel_token=jPvO73OSpKfQD9hwEb6EnrdgUwAHKQVEHHsNA25IbXEcVLA68myGXzjdXODaGhyS&chatfuel_block_id=63809fc68e17052f16c3ca01

Parameters and values

Required

Parameters:

chatfuel_token

One of these routing parameters:

chatfuel_flow_name
chatfuel_block_name
chatfuel_block_id

URL values:

<BOT_ID>

<USER_ID>

Optional

You can add these to customize your request:

chatfuel_message_tag - Allows sending messages outside the 24 hour window 🡽

<USER_ATTRIBUTE>=<VALUE> - Sets custom user properties

List of available parameters and values

Parameter	Description	Type
`chatfuel_token`	Unique token for your company	Required
`<BOT_ID>`	Your company ID	Required
`<USER_ID>`	ID of a contact you want to message	Required
`chatfuel_flow_name`	Name of your flow	Required*
`chatfuel_block_name`	Name of your block	Required*
`chatfuel_block_id`	ID of your block or flow	Required*
`chatfuel_message_tag`	Tag for sending messages ouside the 24 hour window 🡽	Optional
`<USER ATTRIBUTE>`	Name and value of a contact property (Example: `customertype=new`)	Optional
`tags`	List of tags to set for a contact (Example: `tags=Helen,female,new_customer`). New tags will replace existing ones.	Optional

* You must include one of these three routing parameters in your request: chatfuel_flow_name, chatfuel_block_name, or chatfuel_block_id

How to get Chatfuel token

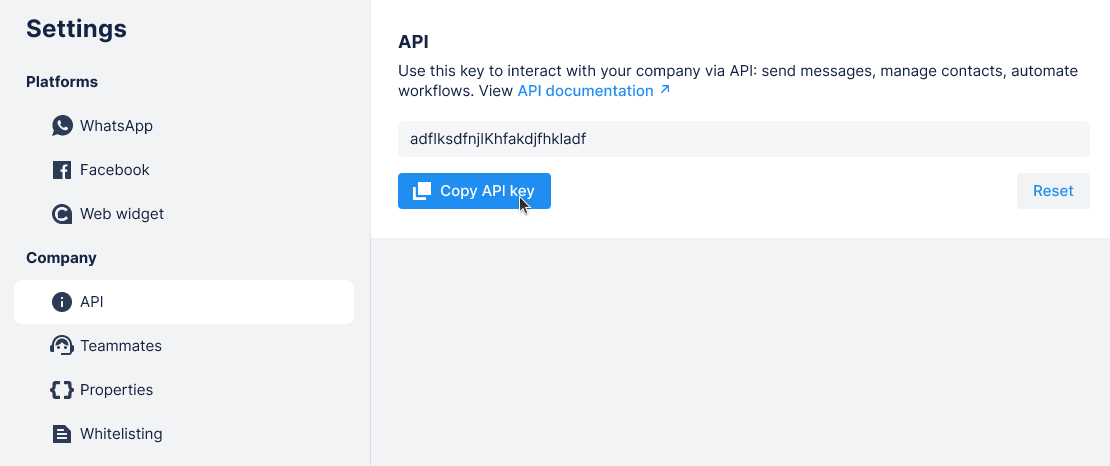

Go to Settings ➜ API.

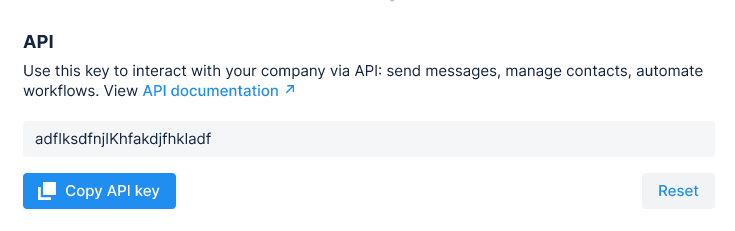

Copy API key to copy your token.

If you need a new token, click Reset.

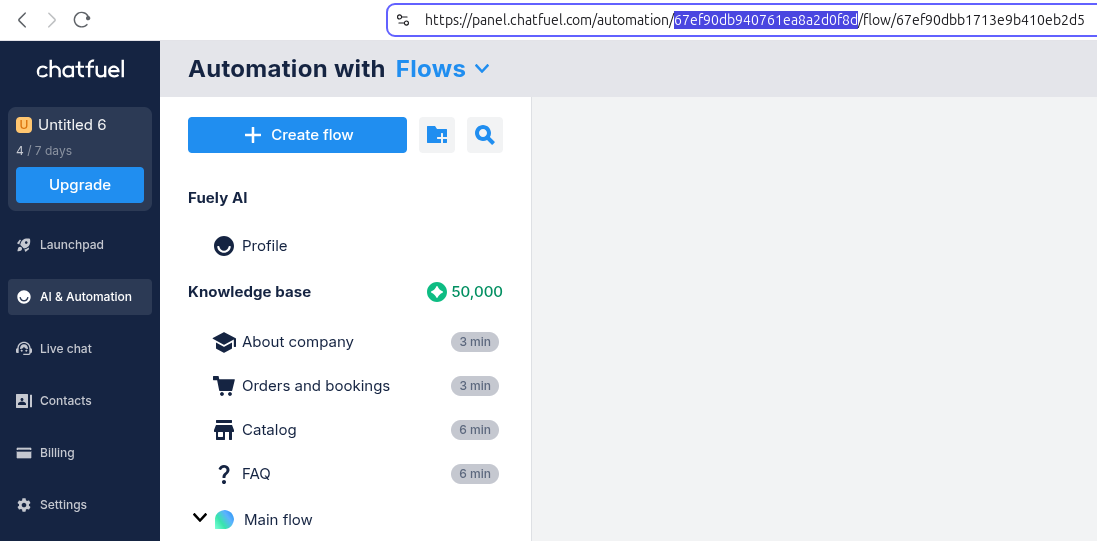

How to get company ID

A company ID is a unique combination of numbers and letters. It looks like this: 612899e1a6ec6f5e0f2fe556. To get it:

Open AI & Automation.

Click on the address bar in your browser.

Copy your company ID.

How to get a user ID

There are two types of IDs you can use for the <USER_ID> URL value: user id or chatfuel user id. The easiest way to get them is to look them up in the People tab.

Open Live chat.

Click on your name in the list.

Find and copy either a user id or chatfuel user id.

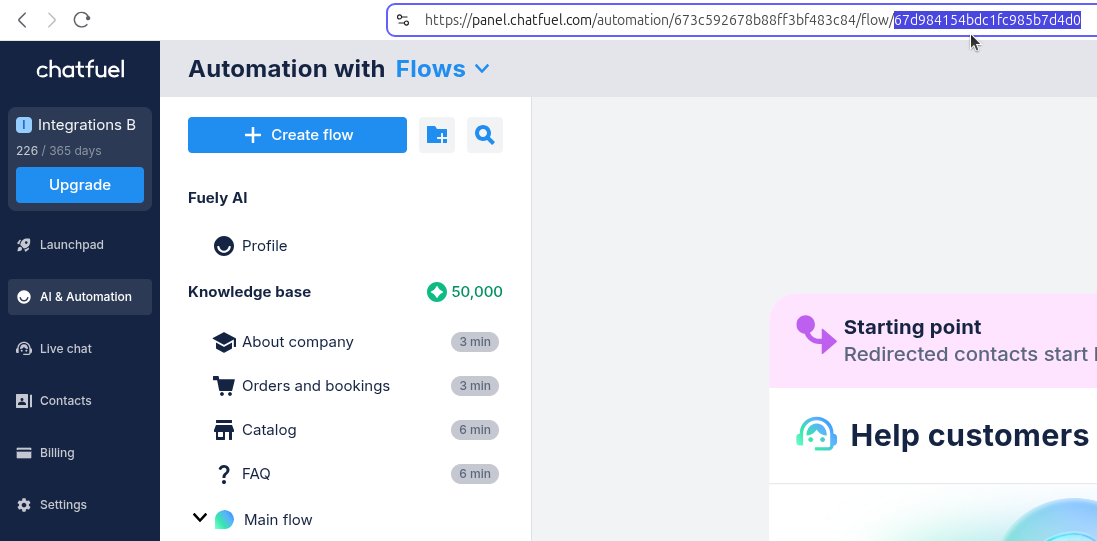

How to get ID for block or flow

A block or a flow ID looks similar to a company ID: 61fbd2f0a2d3e66f2ed59de7.

Open AI & Automation.

Open your flow.

Click on the address bar in your browser.

Copy your flow ID.

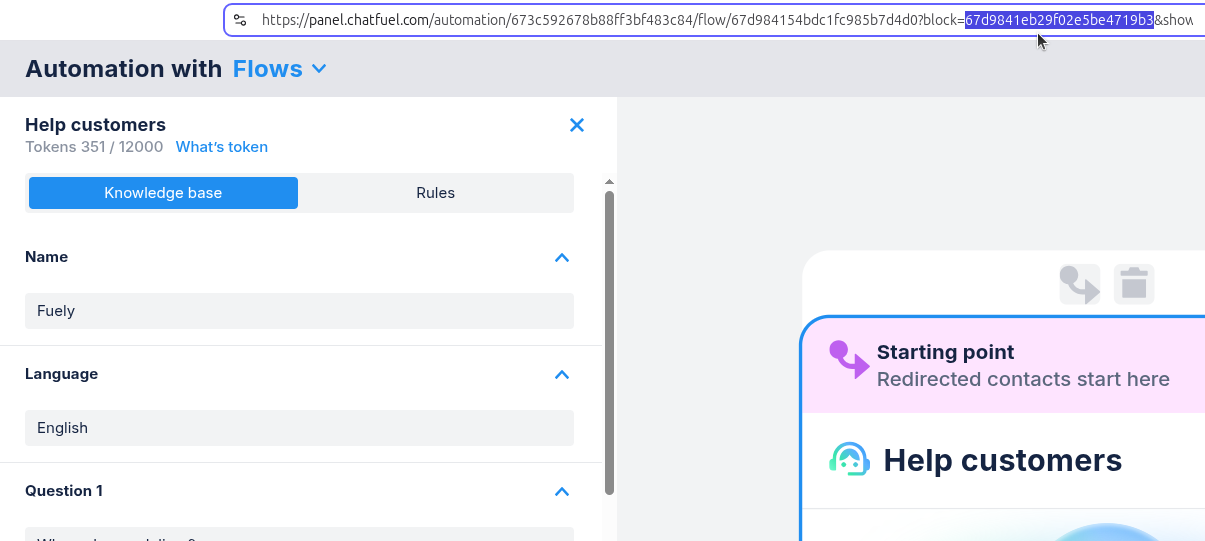

For blocks:

Choose your block.

Copy the ID next to the flow ID.

Rules

You can send up to 25 RPS per bot to the Broadcasting API

All parameters starting with chatfuel_ are reserved and should not be use
